Performance Air Conditioning Condenser. Porsche 996 turbo / GT2 / C4S / 997 / 987 Boxster Cayman  ❭  8394

Performance A/C Condenser - fits Left and Right Hand Side

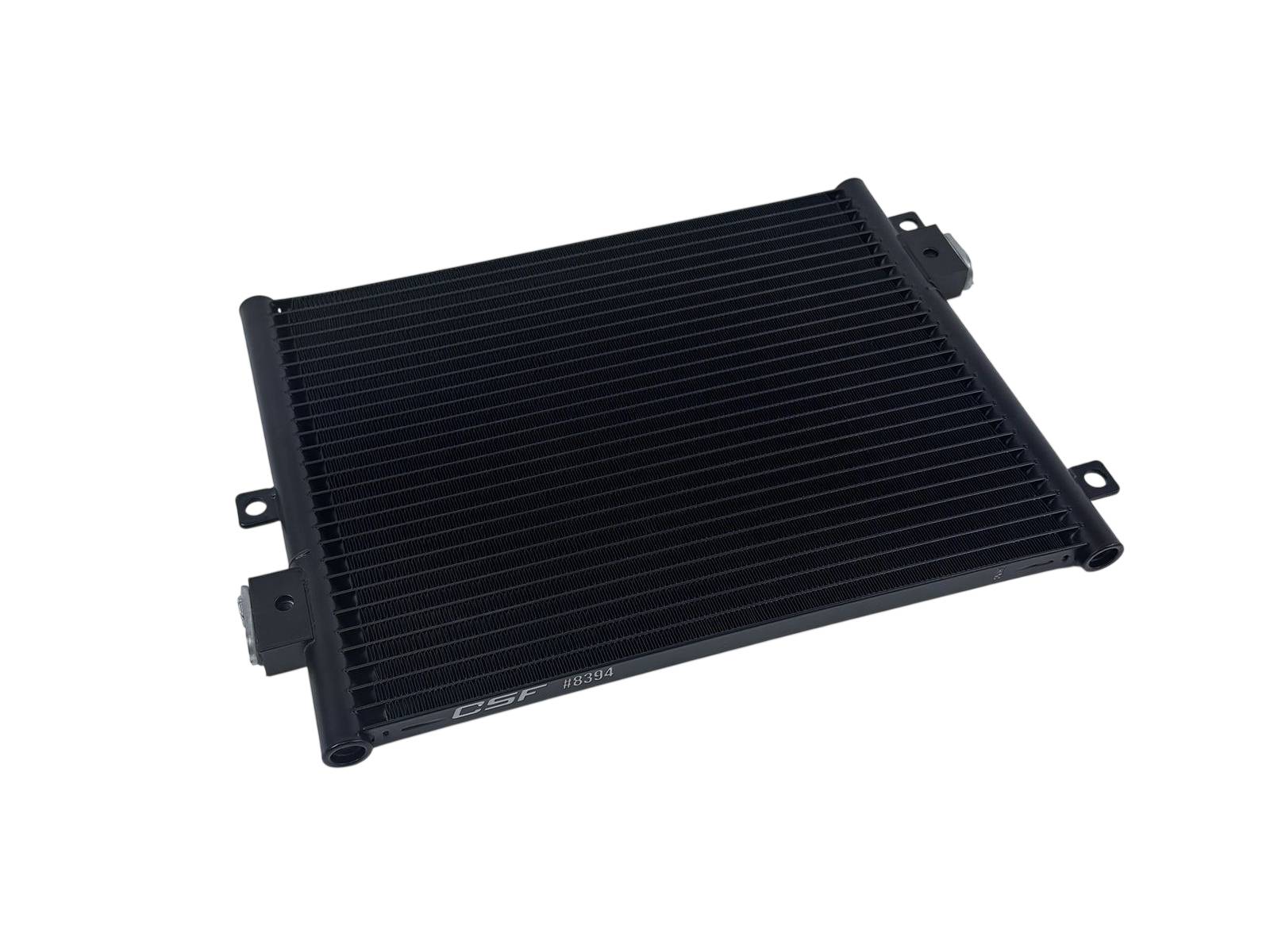

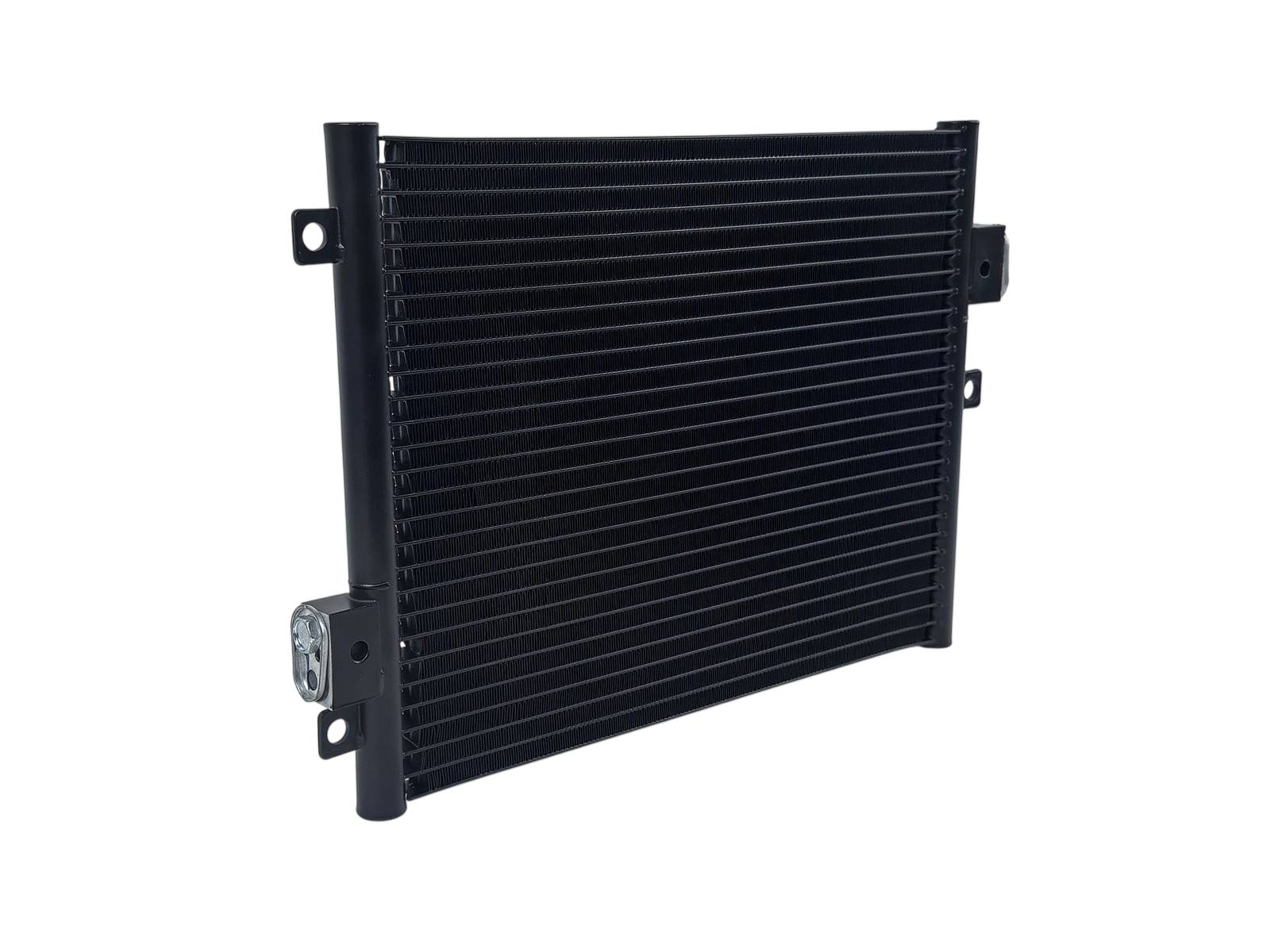

Upgrade your Porsche's air conditioning and cooling system with the CSF Performance A/C Condenser. This premium all-aluminium condenser combines OE fitment with modern cooling technology to deliver superior performance, durability and airflow compared with the factory condenser.

Fits:

• Porsche Boxster 987 2.7L 2005-08/08
• Porsche Boxster 987 S 3.2/3.4L 2005-08/08
• Porsche Boxster 987 MKII 2.9L 2009-12
• Porsche Boxster S 987 MKII 3.4L 2009-12
• Porsche 996 C4S 3.6L 09/01-2005
• Porsche 996 TURBO 2000-05
• Porsche 996 GT2 2001-05
• Porsche 997 MK1 Carrera 2 3.6L 2005-08
• Porsche 997 MK1 Carrera 2S 3.8L 2005-08
• Porsche 997 MK1 Carrera 4 3.6L 2005-08
• Porsche 997 MK1 Carrera 4S 3.8L 2005-08
• Porsche 997 MK1 TURBO 2007-09
• Porsche 997 MK1 GT3 / GT3 RS 2007-0
• Porsche 997 MK1 GT2 2007-0
• Porsche 997 MKII Carrera C2 3.6L 2009-12
• Porsche 997 MKII Carrera C4 3.6L 2009-12
• Porsche 997 MKII Carrera C2S 3.8L 2009-12
• Porsche 997 MKII Carrera C4S 3.8L 2009-12
• Porsche 997 MKII GT3 / GT3 RS 2010-11
• Porsche 997 MKII Turbo 2010-13
• Porsche 997 MKII GT2 RS 2011-13
• Porsche Cayman 2.7L 987C 2006-08
• Porsche Cayman S 3.4L 987C 2005-08
• Porsche Cayman 2.9L 987C MKII 2009-12
• Porsche Cayman S / R 3.4L 987C MKII 2009-12

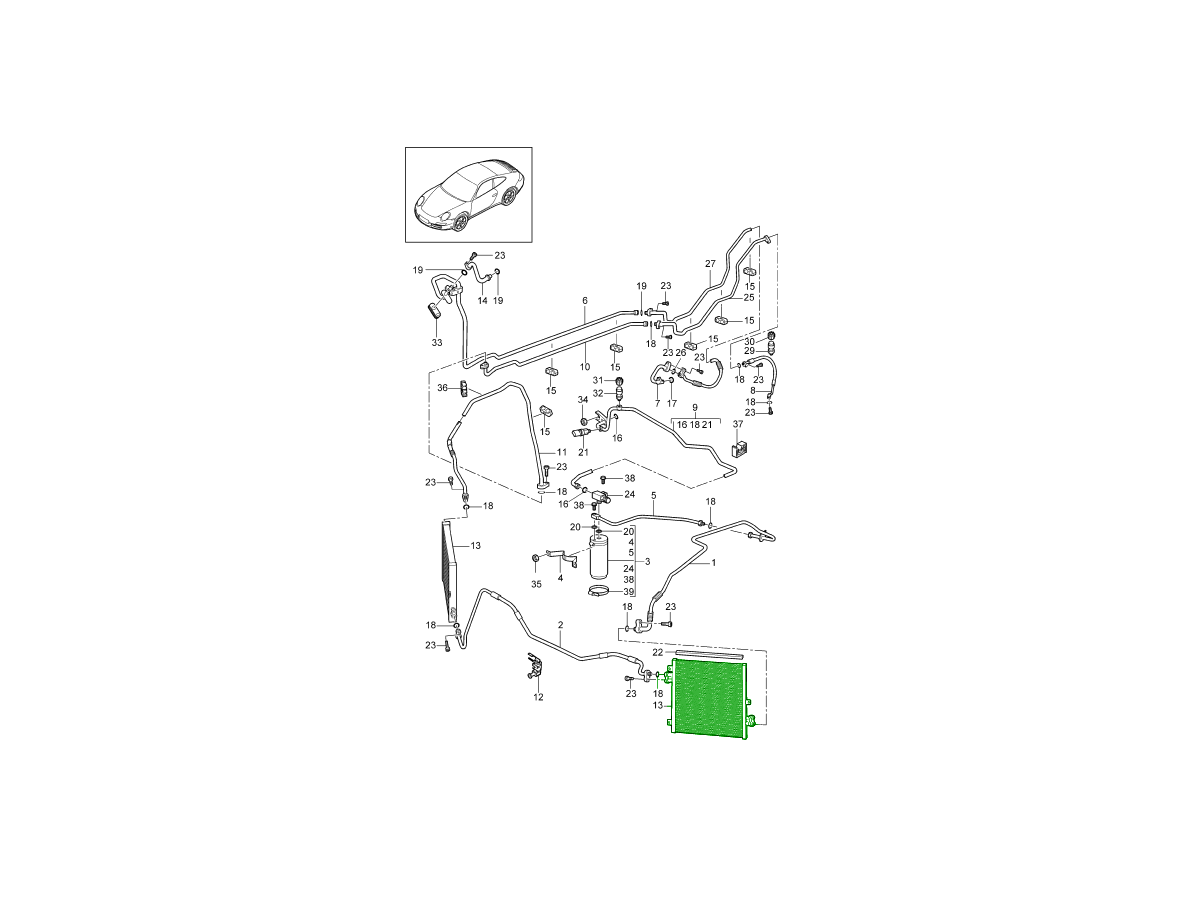

Diagram ref no 13

As Porsche's water-cooled models continue to mature, maintaining an efficient cooling system becomes increasingly important. Blocked, corroded or ageing condensers reduce air conditioning efficiency while also restricting airflow to the engine cooling radiators positioned behind them. CSF has engineered this condenser as a direct replacement that not only restores A/C performance but also improves overall cooling system efficiency.

The CSF Performance Condenser is the perfect complement to the award-winning CSF 997/987 Side Radiators (CSF #7047, #7048, #7055 and #7056), creating a complete OEM+ cooling solution for both road and track-driven Porsche models.

Advanced CSF Cooling Technology

With decades of experience manufacturing high-performance cooling systems for OEM manufacturers, motorsport and aftermarket applications, CSF has developed a condenser that significantly improves upon the original Porsche design.

Unlike many replacement condensers, the CSF unit incorporates a Dual-Pass Cross-Flow Parallel Condenser Core with advanced microtube technology to maximise cooling efficiency while maintaining factory fitment.

The result is:

• Faster cabin cooling.
• Improved refrigerant efficiency.
• Better airflow to the engine radiators.
• Improved engine cooling under demanding conditions.
• Enhanced long-term durability.
• Direct OE replacement installation.

Superior Performance Over the Original Condenser

The factory Porsche condenser uses a conventional parallel-flow design. CSF improves upon this by incorporating a 16mm high-pressure 10-channel microtube core, providing increased refrigerant flow and significantly greater surface area for heat transfer.

This advanced core is combined with 26 rows of cooling tubes and 27 rows of 8mm multi-louvered cooling fins, allowing the condenser to dissipate heat more effectively while simultaneously increasing airflow to the cooling radiators behind it.

Compared with a brand-new factory condenser, the CSF unit delivers approximately 5% greater cooling performance, while offering a substantially larger improvement over older condensers suffering from corrosion, blocked fins or accumulated road debris.

Why Upgrade to the CSF OEM+ Condenser?

Whether your Porsche is a daily driver, weekend sports car or dedicated track machine, upgrading the condenser provides several important benefits.

Improved Air Conditioning Performance

The advanced microtube core transfers heat more efficiently, allowing the air conditioning system to cool the cabin faster and operate more effectively in high ambient temperatures.

Better Engine Cooling

The optimised fin design allows more air to reach the radiators mounted behind the condenser, improving coolant temperatures during spirited driving, track use and hot weather.

Increased Durability

Constructed entirely from aluminium using modern manufacturing techniques, the CSF condenser offers excellent resistance to corrosion, vibration and long-term fatigue.

Outstanding Value

The CSF Performance Condenser delivers improved cooling performance while often costing significantly less than purchasing a new Genuine Porsche condenser.
